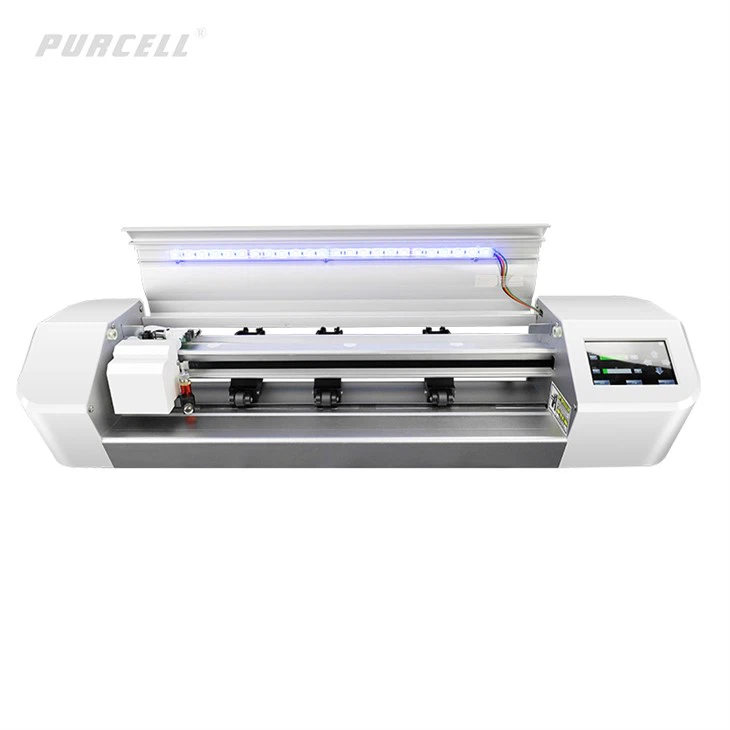

Compact Desktop Vinyl Cutting Plotter
5 Key Highlights
- User-Friendly Touch Screen – 5-inch interface simplifies operation and setting adjustments.
- Precision Cutting – Single head cutter delivers ±0.01mm accuracy on vinyl, paper, heat transfer sheets, and more.
- Automatic Camera Positioning – Built-in CCD camera ensures precise contour alignment for intricate designs.
- Versatile Applications – Ideal for signage, decals, labels, glass etching, CAD designs, woven graphics, and lightbox production.
- Compact & Durable Design – Lightweight frame (10.5kg) and robust components for reliable, long-term use.
Product Advantages & Use Scenarios
The S500 Desktop Plotter is a versatile and compact cutting solution for both professionals and hobbyists. Its precise single-head cutter and CCD camera scanning make it perfect for creating high-quality designs without errors.
Ideal for:
- Vinyl stickers, heat transfer sheets, and cardstock projects
- Signage, decals, and graphic production
- Glass sandblasting and lightbox panels
- CAD sketch panels and creative DIY crafts
- Reflective films and silicone mud designs
With its fast 700mm/s cutting speed and automatic camera positioning, the S500 saves time, reduces material waste, and increases workflow efficiency in small studios or home workshops.
Product Description
The desktop vinyl cutting plotter combines precision, versatility, and ease of use. Its 5-inch touch screen allows intuitive navigation, while the built-in CCD camera ensures accurate contour cutting on various materials.
The S500 supports USB, U-disk, and optional Wi-Fi connectivity for flexible file transfer. Compatible with CameraCut and CADR plug-ins, it seamlessly integrates with design software to move from digital layout to finished project smoothly.
Despite its compact size, the S500 is durable, lightweight, and easy to maintain, making it a reliable tool for professional designers, craft enthusiasts, and educational labs.
Who Uses the S500
Sign Makers & Graphics Shops - The 410mm cutting width handles standard sign vinyl rolls without tiling. CCD camera auto-positioning reads registration marks for print-and-cut contour work on decals, labels, and heat transfer designs. ±0.01mm accuracy is sufficient for text as small as 3mm.
Small Studios & Home Workshops - At 10.5 kg and 770 x 310 mm footprint, the S500 fits on a standard desk. USB, U-disk, and optional Wi-Fi connectivity adapt to any workspace setup. The 5-inch touchscreen provides standalone control - no PC required for basic cut jobs.
Educational Labs & Makerspaces - Simple interface, durable build, and broad material compatibility (vinyl, paper, cardstock, reflective film, silicone mud, glass sandblasting resist) make the S500 suitable for multi-user environments where equipment needs to handle diverse projects without constant recalibration.
FAQ
Hot Tags: compact desktop vinyl cutting plotter, China compact desktop vinyl cutting plotter manufacturers, suppliers, factory
|
Parameter |
Specification |
|
Model |
S500 |
|
Display |
5-inch Touch Screen |
|
Cut Width |
410 mm |
|
Motor Type |
Step Motor |
|
Max Cutting Speed |
700 mm/s |
|
Cutting Force |
800 g (0.8 kgf) |
|
Cutting Head |
Single Head |
|
Cutting Accuracy |
±0.01 mm |
|
Locate Mode |
Automatic Camera Positioning |
|
Interface |
USB / U-disk / Wi-Fi (Optional) |
|
OS |
Windows XP / 7 / 8 / 10 |
|
Software |
CameraCut / CADR Plug-in |
|
Power |
<100 W |
|
Power Supply |
AC100–240V 50/60Hz |
|
Work Environment |
5℃–35℃, 30–70% RH |
|
Applications |
Vinyl, paper, reflective film, silicone mud, glass sandblasting, CAD panels, lightbox production |
|
Built-in Camera |
Yes |
|
Device Size |
770 × 310 × 265 mm |
|
Gross Weight |
10.5 kg |
