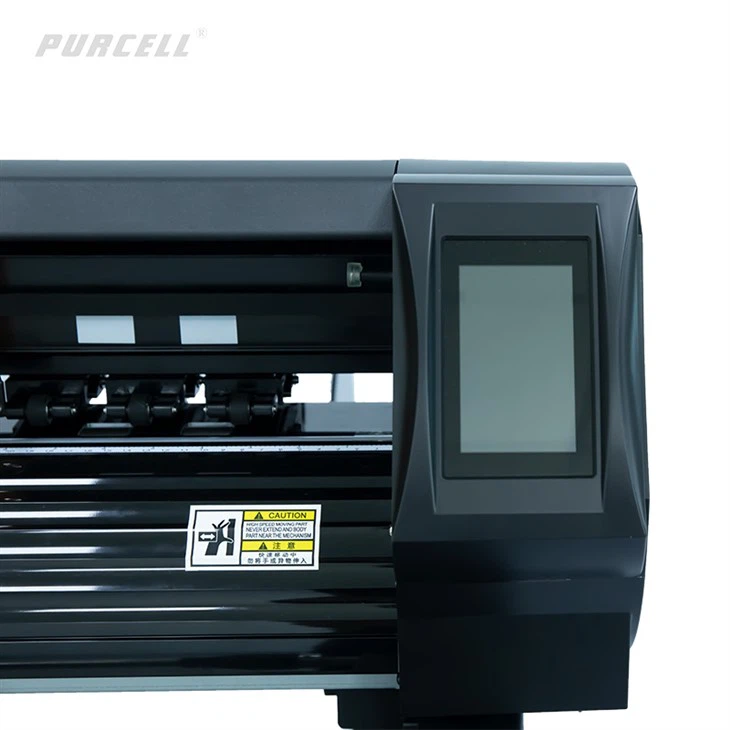

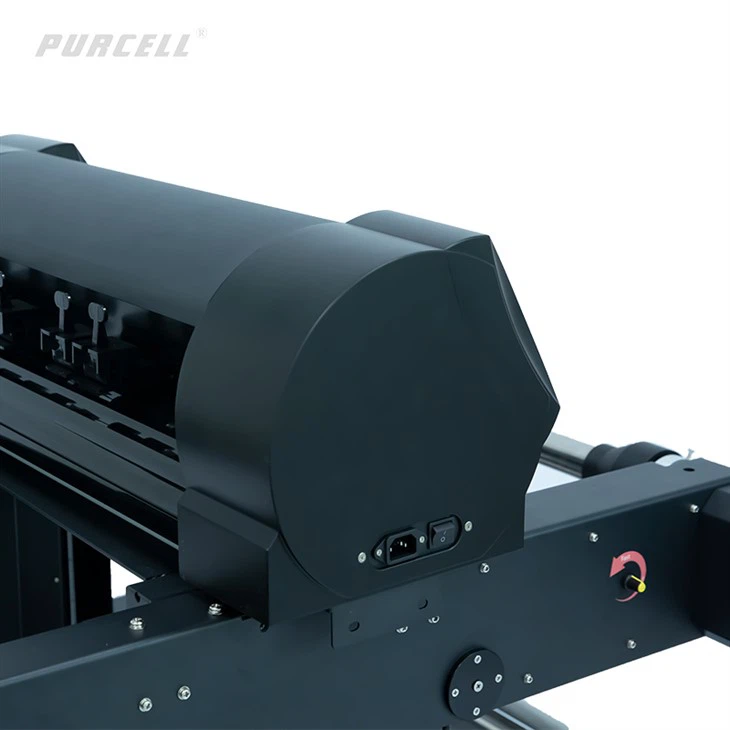

Purcell VH330_5SF Roll Label Cutter Auto Waste Removal
Description
Technical Parameters
Purcell VH330_5SF Roll Label Cutter Auto Waste Removal
Advantages
1. Roll-to-roll cutting with automatic waste removal and winding
2. One-key calibration for offset values, reducing setup time and media waste
3. Servo motor system delivers stable, quiet, and fast cutting up to 1200mm/s
4. USB flash drive and optional Wi-Fi for fully offline operation
5. Supports multiple software platforms including CorelDRAW and SignMaster
Description
Designed for seamless workflow and productivity, the VH330_5-SF offers:
Roll-to-Roll Cutting with Auto Waste Removal: Streamlines production from feeding to winding with minimal operator input.
One-Key Calibration: Quickly adjusts offset values to reduce setup time and material waste.
Servo Motor System: Stable, quiet, and fast cutting up to 1200mm/s.
Flexible Connectivity: Operates via USB flash drive, cable, or optional Wi-Fi for offline jobs.
Software Compatibility: Supports CorelDRAW, SignMaster, and other major design platforms.
High Precision: Accurate contour cutting for complex shapes, even for small lettering down to 3mm.
Ideal for label customization, sticker production, sign-making, and heat transfer industries, the VH330_5-SF delivers high-speed, consistent results for mid- to large-volume tasks.
parameters
|
Item |
Specification |
|
Model |
VH330_5-SF |
|
Maximum Media Width |
490mm |
|
Maximum Cutting Width |
330mm |
|
Motor Type |
Servo Motor |
|
Max Cutting Thickness |
350g (cut-through supported) |
|
Maximum Roll Size |
330mm |
|
Minimum Roll Size |
150mm |
|
Maximum Roll Diameter |
150mm |
|
Maximum Cutting Speed |
1200mm/s |
|
Cutting Force |
2000g |
|
Cutting Accuracy |
±0.1mm |
|
Repeat/Positioning Precision |
±0.082mm |
|
Minimum Cut Letter Size |
3–5mm (varies by material/text type) |
|
Interface Options |
U-disk / USB cable / Optional Wi-Fi |
|
Power Consumption |
<100W |
|
Operating Environment |
5℃ – 35℃ |
|
Supported Materials |
Roll labels, stickers, heat transfer vinyl, signs |
|
Supported OS |
Windows XP / 7 / 8 / 10 |
|
Supported Software |
CorelDRAW / SignMaster |
|
Gross Weight |
120kg |
|
Packing Size |
1330 × 980 × 1250 mm |
roll label cutter,VH330_5-SF label cutting machine,auto waste removal cutter,servo motor label cutter,sticker and heat transfer cutter
