Mini UV Film Curing Machine

The Mini UV Film Curing Machine uses 18 high-efficiency UV LED beads to deliver even, full-surface curing within 60 seconds. Its engineered optical output ensures strong bonding performance for UV soft films, especially on curved displays that demand precise adhesion.

Send Inquiry

Description

Technical Parameters

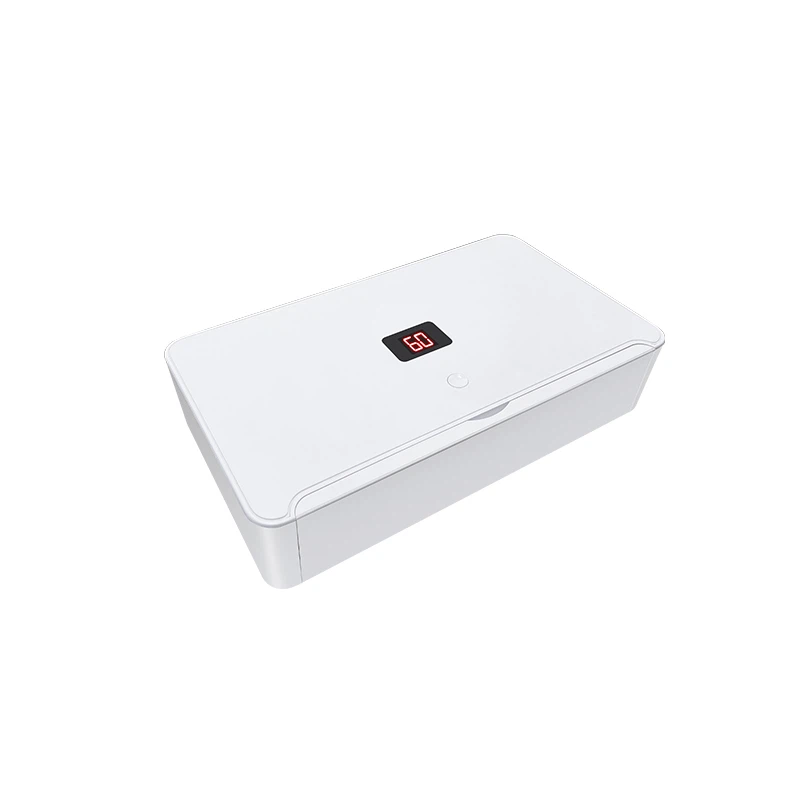

Mini UV Film Curing Machine

Next-Generation Portability. Professional-Grade Curing.

The UV-002 is the second-generation evolution of our intelligent UV curing series, specifically engineered for maximum portability without sacrificing performance. This "Mini" version features a streamlined, lightweight design that makes it an essential tool for mobile repair technicians, small retail kiosks, and DIY enthusiasts. Designed to provide a perfect cure for UV screen protectors and adhesives, the UV-002 offers a smarter, more compact solution for modern device protection.

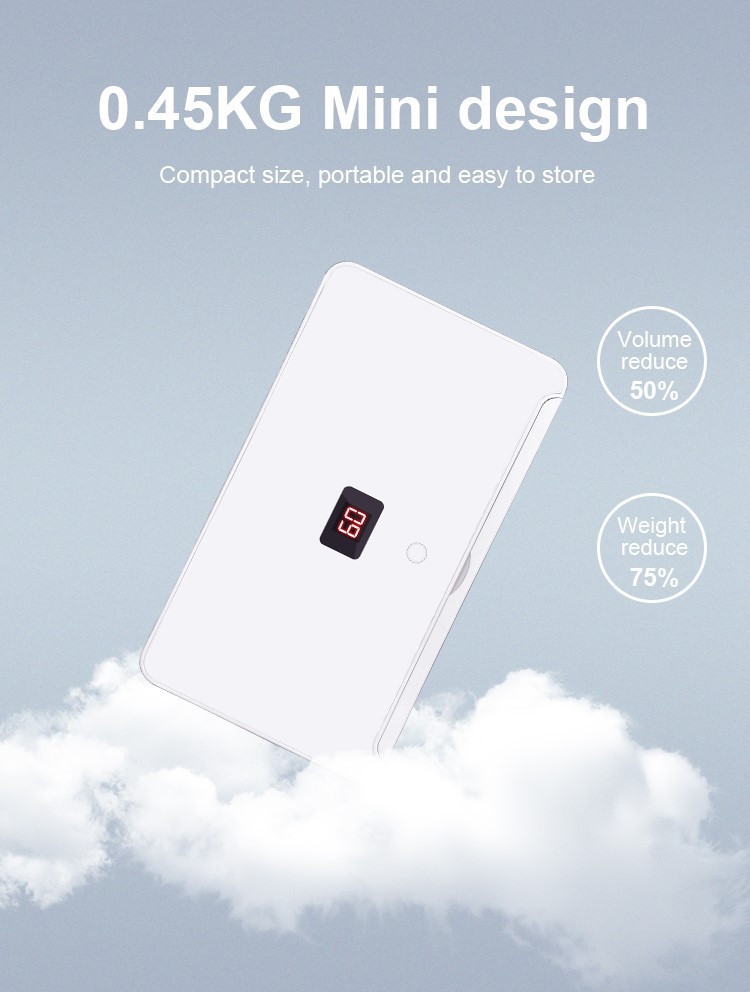

Ultra-Compact & Portable Design

The UV-002 features a significantly reduced footprint and a weight of only 0.47 kg, making it easy to carry and ideal for workspaces with limited desk area.

Dual-Wavelength UV LED Technology

Utilizing a specialized 365nm + 395nm dual-wavelength light source, the machine ensures deep and uniform curing for a wide variety of UV-sensitive materials and screen protectors.

Intelligent One-Touch Controls

The simplified interface allows for effortless operation with a single touch, featuring a precise built-in timer for consistent results every time.

Efficient Heat Dissipation

Designed with integrated ventilation to manage thermal output, ensuring the device remains cool during continuous operation and extending the overall lifespan of the UV LEDs.

Technical Specifications

Item	Specification
Model	UV-002
Product Name	Intelligent Mini UV Curing Machine
Input Voltage	100V - 240V, 50/60Hz
Output Voltage	24V / 1.0A
Rated Power	24W
Wavelength	365nm + 395nm
Timing Options	30s / 60s
Product Weight	0.47 kg
Product Size	210 x 120 x 85 mm
Inner Chamber Size	185 x 105 x 20 mm

Operating Instructions

Power Connection: Plug the power adapter into the DC port of the UV-002 and connect it to a power source.
Placement: Open the tray and place the mobile phone (with the UV protector applied) into the curing chamber.
Selection: Choose the appropriate curing time (30s or 60s) based on the material requirements.
Automatic Cycle: The UV LEDs will activate and automatically shut off once the selected timer expires.

FAQ

Q: How does the UV-002 differ from the UV-001?

A: The UV-002 is the second-generation model focused on a "Mini" form factor. It is significantly lighter (0.47 kg vs 0.8 kg) and more compact, making it better suited for mobile use while still providing professional 24W curing power.

Q: Can it fit the latest large-screen smartphones?

A: Yes. Despite its mini size, the internal chamber measures 185 x 105 mm, which is designed to accommodate almost all modern smartphones, including "Plus," "Max," and "Ultra" models.

Q: Is it compatible with all UV screen protectors?

A: The dual-wavelength (365nm + 395nm) LEDs are designed to be compatible with the vast majority of UV-curable films and glues available on the market.

Mini UV Film Curing Machine1

Mini UV Film Curing Machine2

Mini UV Film Curing Machine3

Mini UV Film Curing Machine4

Mini UV Film Curing Machine5
