Purcell ZD350Pro-L Smart Label Cutter, Auto Feed & QR Scan
video

Purcell ZD350Pro-L Smart Label Cutter, Auto Feed & QR Scan

The Purcell ZD350Pro-L is an intelligent, auto-feed label cutting machine optimized for high-volume, unattended production. With support for QR code recognition, the machine automatically matches cutting files to printed media—enabling seamless, unmanned batch cutting with exceptional accuracy and minimal intervention.
Send Inquiry

Description

Technical Parameters

Purcell ZD350Pro-L Smart Label Cutter, Auto Feed & QR Scan

Advantages



1. Supports QR code matching for file automation and unmanned continuous cutting

2. Fully offline operation via U-disk and Wi-Fi; no PC required during cutting

3. Equipped with LED lighting, high-precision CCD camera, and auto paper feed

4. Advanced contour/die cutting with 2000g max pressure for a wide range of materials

5. Multi-software support: CorelDRAW, Illustrator, SignMaster, Camera Cut



Description



The Purcell ZD350Pro-L is an intelligent, auto-feed label cutting machine optimized for high-volume, unattended production. With support for QR code recognition, the machine automatically matches cutting files to printed media-enabling seamless, unmanned batch cutting with exceptional accuracy and minimal intervention.



Designed for professional use, it features a built-in CCD camera that performs rapid scanning and reference mark detection to accurately align cutting lines. Whether for stickers, signage, or cards, the ZD350Pro-L handles kiss cuts, full cuts, and dotted lines with ease thanks to its 2000g max cutting pressure.

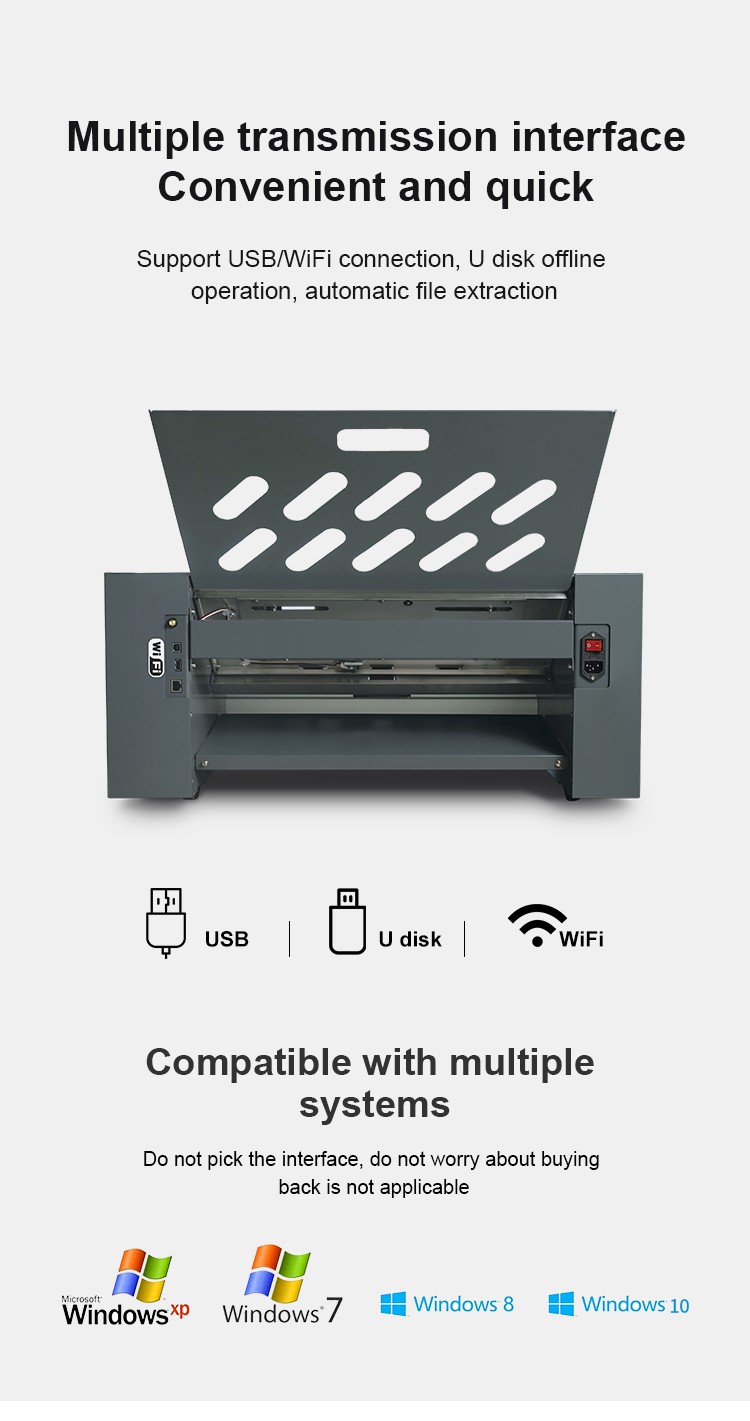

Operating entirely offline, this machine accepts input via USB flash drive or Wi-Fi, eliminating the need for a constantly connected computer. Designers simply transfer files to a U-disk, and operators can execute cuts directly from the cutter's interface-making workflows more efficient and secure.



Its LED-illuminated work area ensures visibility during operation, while the automatic paper feeding system and dual clamp rollers deliver precise media positioning, allowing cuts to go right to the edge without slipping.



Compatible with CorelDRAW, Illustrator, and SignMaster, the ZD350Pro-L supports direct plug-in design output and automatic contour extraction-no manual marker setup or file conversion required.



Ideal for post-print production environments, custom label studios, and sticker manufacturing, the ZD350Pro-L combines powerful automation with cutting precision in a sleek, efficient form.



parameters



Item

Specification

Model

ZD350Pro-L

Maximum Media Width

350mm

Maximum Cutting Width

330mm

Auto Feeding Quantity

150 sheets

Maximum Standby Speed

800mm/s

Maximum Cutting Speed

800mm/s

Cutting Force

2000g

Positioning Method

CCD Camera with Contour Edge Patrol & QR Code Support

Accuracy

±0.1mm

Repeat & Positioning Accuracy

±0.082mm

Motor Type

Stepper Motor

Power Supply

220V / 50Hz / 50A

Power Consumption

<100W

Interface Options

USB / U-disk / Wi-Fi

Operating Environment

5℃ – 35℃

Cuttable Materials

Self-adhesive labels, reflective film, holographic media, PVC sheets, paper cards

Supported OS

Windows XP / 7 / 8 / 10

Software Compatibility

CorelDRAW / Illustrator / SignMaster / Camera Cut Plug-in

Product Size

800 × 510 × 530 mm

Package Size

800 × 510 × 530 mm



ZD350-Pro-L20240427EN01

ZD350-Pro-L20240427EN02

ZD350-Pro-L20240427EN03

ZD350-Pro-L20240427EN04

ZD350-Pro-L20240427EN05

ZD350-Pro-L20240427EN06

ZD350-Pro-L20240427EN07

ZD350-Pro-L20240427EN08

ZD350-Pro-L20240427EN09

ZD350-Pro-L20240427EN10

ZD350-Pro-L20240427EN11

ZD350-Pro-L20240427EN13

Hot Tags: purcell zd350pro-l smart label cutter, auto feed & qr scan, China purcell zd350pro-l smart label cutter, auto feed & qr scan manufacturers, suppliers, factory, half cut sticker machine, laser cutter vinyl sticker, digital die cutter, round sticker cutter, shrink sleeve cutting machine, sticker label cutting machine

Item

Specification

Model

ZD350Pro-L

Maximum Media Width

350mm

Maximum Cutting Width

330mm

Auto Feeding Quantity

150 sheets

Maximum Standby Speed

800mm/s

Maximum Cutting Speed

800mm/s

Cutting Force

2000g

Positioning Method

CCD Camera with Contour Edge Patrol & QR Code Support

Accuracy

±0.1mm

Repeat & Positioning Accuracy

±0.082mm

Motor Type

Stepper Motor

Power Supply

220V / 50Hz / 50A

Power Consumption

<100W

Interface Options

USB / U-disk / Wi-Fi

Operating Environment

5℃ – 35℃

Cuttable Materials

Self-adhesive labels, reflective film, holographic media, PVC sheets, paper cards

Supported OS

Windows XP / 7 / 8 / 10

Software Compatibility

CorelDRAW / Illustrator / SignMaster / Camera Cut Plug-in

Product Size

800 × 510 × 530 mm

Package Size

800 × 510 × 530 mm
