High-Capacity Precision. Industrial Strength.

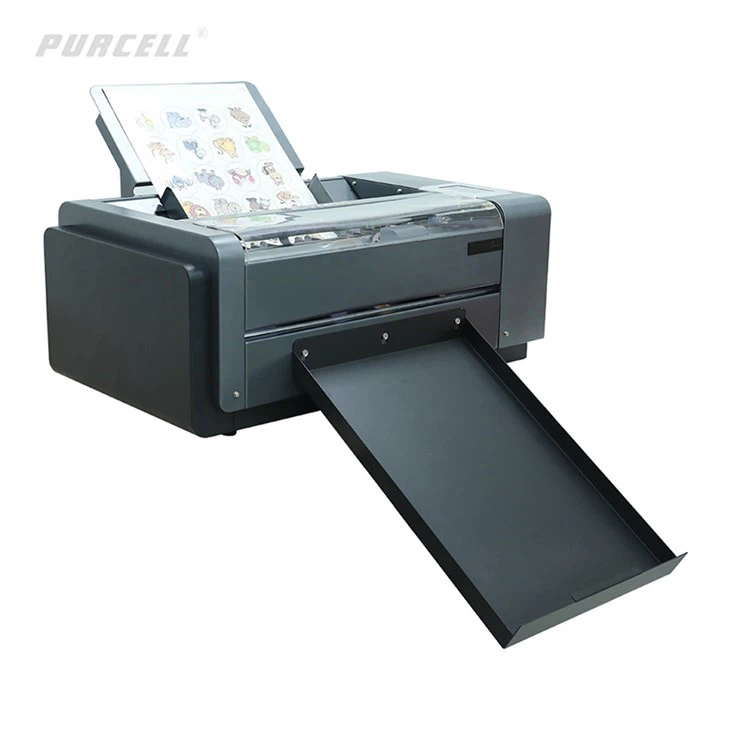

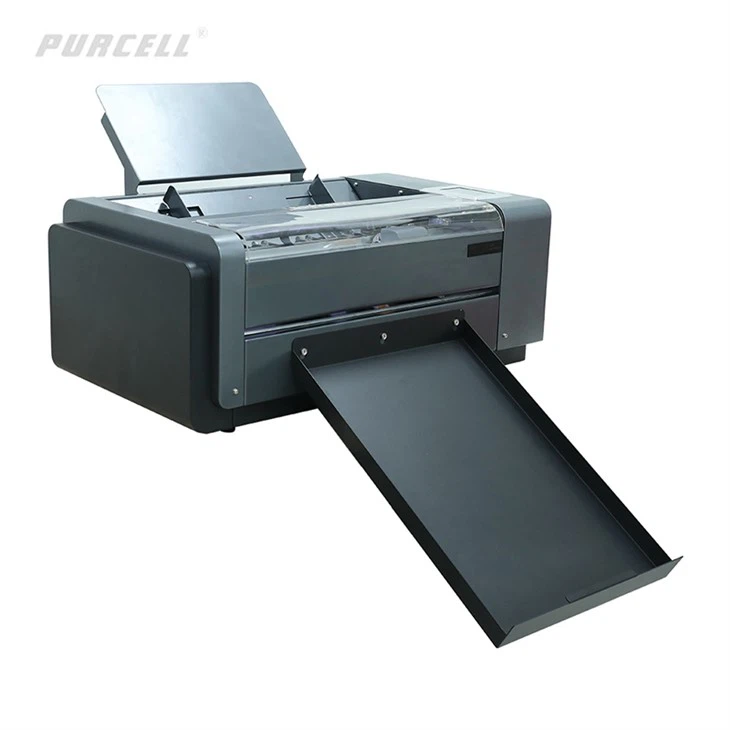

The ZD350 Pro Max (Grey Edition) is a heavy-duty, intelligent sheet-fed cutting system engineered for professional printing houses and high-volume label production. Combining a sophisticated grey industrial aesthetic with a massive 1000-piece auto-feeder, this machine is designed to bridge the gap between desktop convenience and industrial output. With its high-speed HD Camera for instant registration, the Pro Max ensures every kiss-cut, full-cut, or perforated line is executed with surgical precision.
Ultra-Fast Visual Recognition (HD Camera)
The integrated high-definition camera identifies registration marks on various substrates in milliseconds. It automatically adjusts for print skew or distortion, maintaining a consistent accuracy of ±0.1 mm even at high speeds.
Massive 1000-Sheet Auto-Feeder
Designed for true "set-and-forget" production, the expanded feeding tray accommodates up to 1000 sheets at once. This drastically reduces downtime and allows for long-duration, unattended operation for large-scale sticker and label runs.
Heavy-Duty Industrial Force: 2000g
The Pro Max isn't just for thin stickers. With a cutting force of up to 2000g, it easily handles everything from standard vinyl to thick 400 gsm cardstock and rigid specialty materials, making it ideal for packaging prototypes and heavy-duty industrial labels.
Smart Multi-Interface Connectivity
Stay connected your way. The ZD350 Pro Max supports Wi-Fi, USB, and U-Disk offline cutting. Whether you are working in a networked studio or a remote workshop, the machine adapts to your workflow seamlessly.
Who Uses the ZD350 Pro Max
Label Converters & Commercial Print Shops - The 1000-sheet auto-feeder and 350mm cutting width make the Pro Max viable for production-scale label converting. Load a full stack of pre-printed sheets and let the HD camera registration system handle alignment automatically - no manual mark placement, no sheet-by-sheet adjustment.
Packaging Prototyping & Short-Run Production - 2000g cutting force handles 400gsm cardstock, PVC, and rigid specialty materials. Produce folding carton samples, presentation packaging, and short-run production boxes with kiss-cut windows and perforated fold lines in a single pass.
Industrial Sticker & Decal Manufacturers - The HD camera reads registration marks on reflective, holographic, and dark-colored substrates where traditional red-light sensors fail. Maintain ±0.1mm contour accuracy across the full 350mm width on challenging media.
Optimized Production Workflow
- Batch Loading: Stack up to 1000 printed sheets in the rear loading tray. The gravity-fed system ensures smooth, one-by-one feeding.
- Instant Registration: The HD Camera scans the marks, and the software automatically aligns the digital die-lines to the physical print.
- High-Speed Output: The machine processes the batch at industrial speeds, delivering finished labels into the catch tray ready for shipping.
FAQ
When to Choose the Pro Max Over Standard Models
The ZD350 Pro Max is not the default pick for every shop. Choose it over the standard ZD350 when: (1) you process 500+ label sheets per day and the 1,000-sheet auto-feeder means 2-3 hours of unattended production between reloads, or (2) your labels require HD camera registration because manual mark alignment costs you 10-15 minutes per shift.
If you run under 200 sheets per day, the standard ZD350 delivers the same cut quality at a lower price. The Pro Max earns its cost through throughput - it is a production tool, not an entry-level machine. Buyers who need auto-feeding at scale see the fastest payback.
Hot Tags: digital die cutter, China digital die cutter manufacturers, suppliers, factory
|
Item |
Specification |
|
Model |
ZD350 Pro Max (Grey Edition) |
|
Max Media/Cutting Width |
350 mm |
|
Auto Feeding Capacity |
1000 pcs (Max) |
|
Max Cutting Speed |
800 - 1200 mm/s |
|
Max Cutting Force |
2000 g |
|
Cutting Precision |
±0.1 mm |
|
Repeat Precision |
±0.082 mm |
|
Positioning System |
High-Definition Camera |
|
Supported Materials |
Adhesive Vinyl, 400gsm Cardstock, PVC, PET |
|
Connectivity |
Wi-Fi / USB / U-Disk / WLAN |
|
Software Compatibility |
CorelDRAW / AI Plugin (Camera Cut) |
|
Product Weight |
35 kg |
|
Package Dimensions |
780 x 600 x 480 mm |
