Description
Technical Parameters

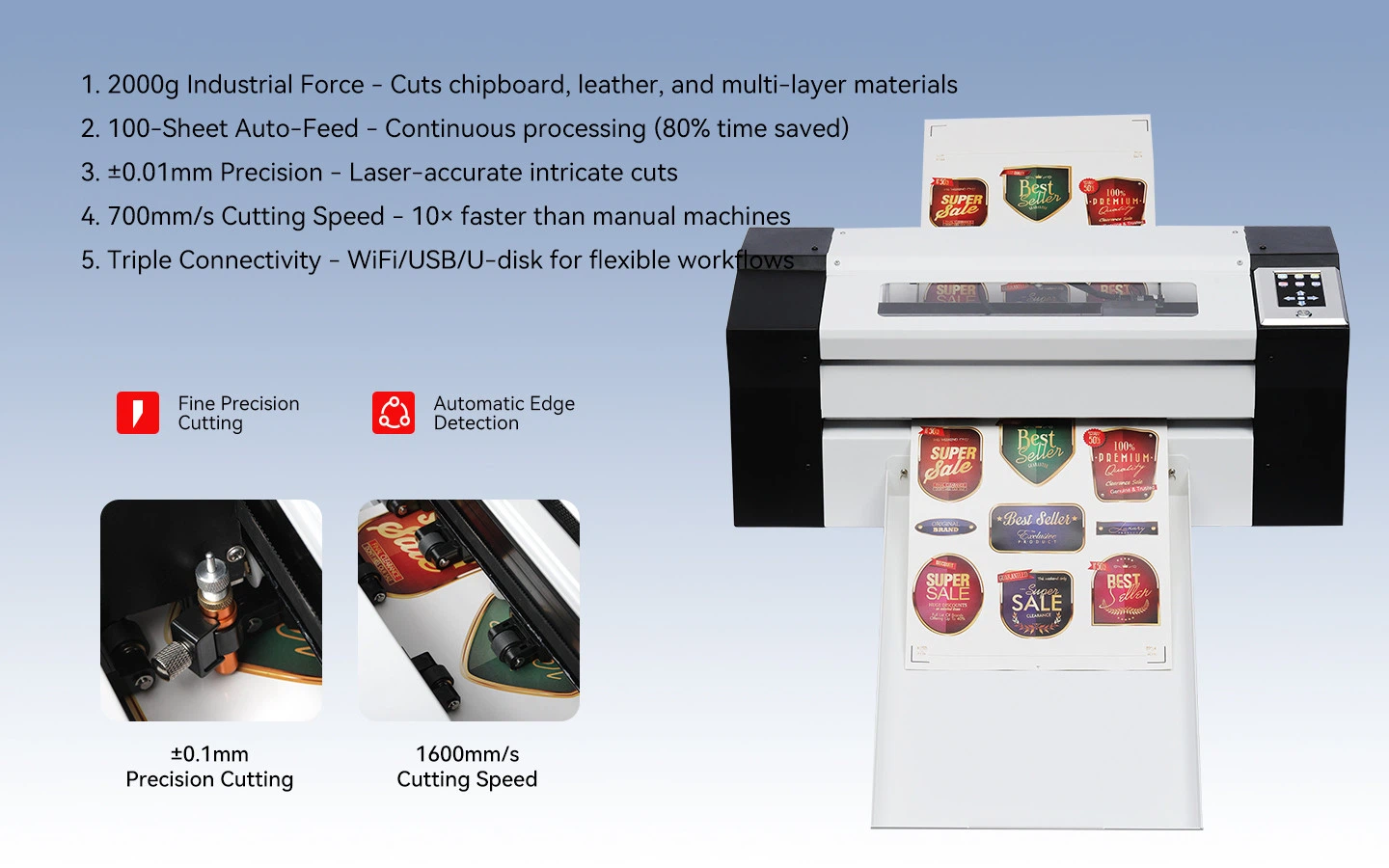

Key Features
±0.1mm Cutting Accuracy
precise enough for intricate sticker designs, small text cutouts, and detailed decal work. The ZD350 Pro holds tolerance across the full 330mm cutting width, from edge to edge.
01
2000g Adjustable Blade Pressure
dial pressure up for 350gsm cardstock and PVC sheets, down for delicate vinyl and thin PET. One machine covers the material range from paper stickers to rigid packaging prototypes.
02
800mm/s Cutting Speed
fast traversal between cut paths keeps total job time short, even on complex multi-object designs. Combined with the stepper motor drive, speed doesn't come at the cost of edge quality.
03
HD Touchscreen with WiFi & USB
operate standalone via the touchscreen interface, send jobs wirelessly over WiFi, or load from a USB drive. No dedicated PC required at the machine.
04
48kg Weighted Base
the heavy chassis absorbs operational vibration that causes blade chatter in lighter machines. The 700 x 420 mm footprint fits a standard workbench while providing enough mass for stable, shake-free cutting.
05
Product Description

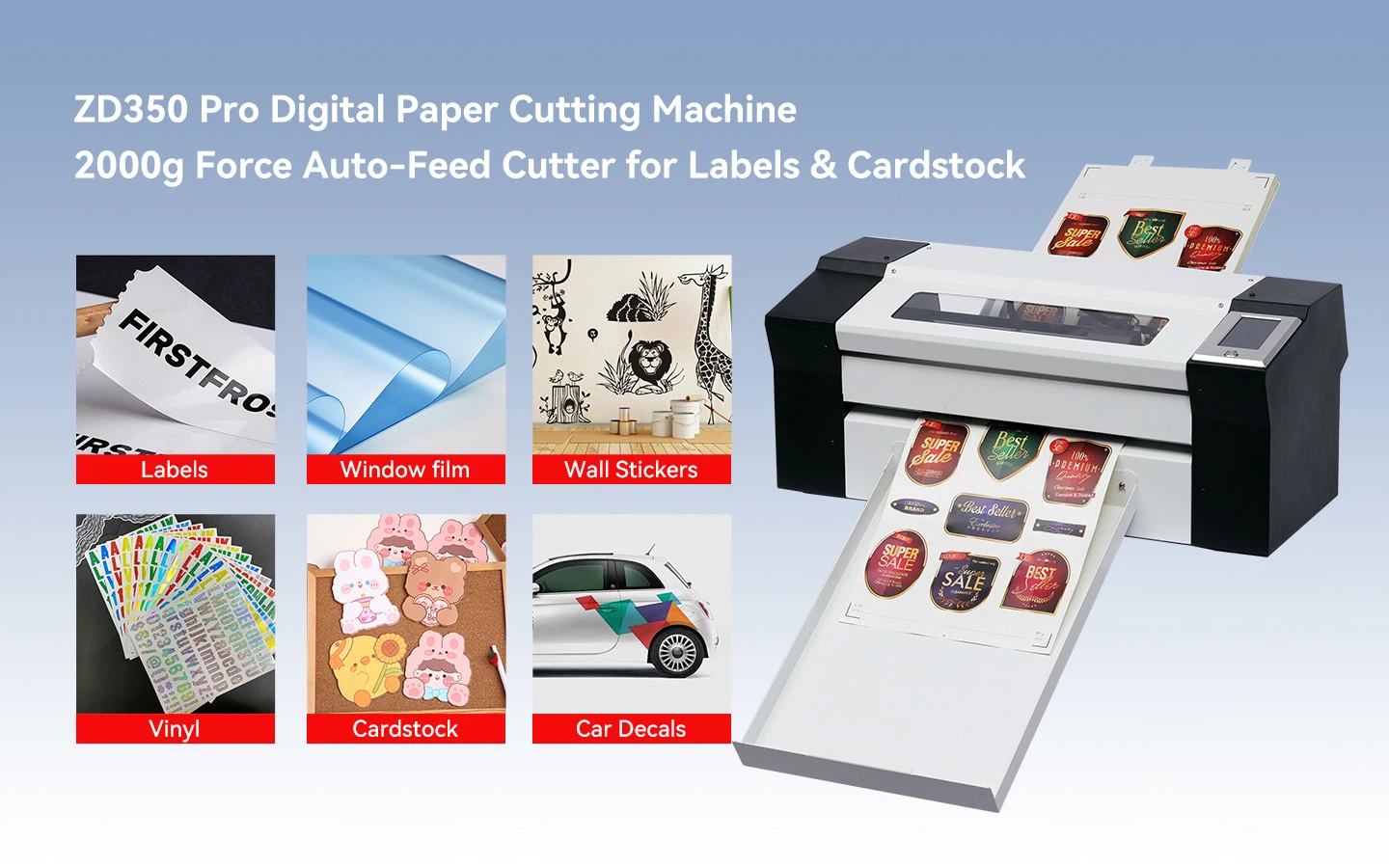

The ZD350 Pro is a desktop-format digital cutter positioned between compact film cutters and full-size industrial plotters. With 330mm effective cutting width, it handles A4+ and letter-sized media - the standard format for sticker sheets, label runs, and packaging samples. The stepper-motor-driven blade carriage delivers ±0.1mm repeatability, sufficient for kiss-cut sticker sheets where the blade must cut the top layer without penetrating the backing.
Material compatibility spans the most common short-run production materials: adhesive vinyl, PET sheets, polypropylene (PP), coated paper up to 350gsm, and thin leather. The anti-slip roller feed system uses a textured drive roller paired with adjustable pinch wheels to maintain alignment on smooth or glossy media - particularly important when cutting pre-printed sheets where registration to the artwork matters.
The ZD350 Pro works with industry-standard design software (Illustrator, CorelDRAW) through direct output or plug-in, eliminating the need for proprietary software or format conversion. For multi-machine shops, WiFi connectivity means one design workstation can drive multiple ZD350 Pro units located across the production floor.
Applications
Sticker & Decal Production - Kiss-cut sticker sheets, individual die-cut decals, and transfer-ready vinyl graphics. The 330mm width accommodates standard retail sticker sheet formats. Run small batches economically without the setup costs of die-cutting.
Custom Label Manufacturing - Product labels, barcode stickers, ingredient panels, and branding labels in short to medium runs. Change designs instantly without swapping dies. The anti-slip feed maintains print-to-cut registration on pre-printed label stock.
Packaging Prototyping - Cut and crease folding carton samples, box prototypes, and packaging mockups from 350gsm cardstock. Test structural designs before committing to production tooling.
Small-Batch Leather & Textile Cutting - Thin leather patches, iron-on HTV designs, and fabric applique patterns. The 2000g pressure handles materials beyond paper and vinyl, expanding the ZD350 Pro's utility beyond traditional print-shop applications.
FAQ
Q: 1. Can the ZD350 Pro do kiss-cut stickers?
A: Yes. The 2000g adjustable pressure and ±0.1mm accuracy allow precise kiss-cutting - cutting through the sticker layer while leaving the backing sheet intact. This is the ZD350 Pro's primary use case in sticker production.
Q: 2. What is the difference between ZD350 Pro and ZD350 Ultra?
A: The ZD350 Pro is a single-head desktop cutter optimized for sticker and decal work at up to 800mm/s. The ZD350 Ultra adds a dual-head system with independent tool control for simultaneous creasing and cutting, plus a 1000-sheet auto-feeder and higher 1200mm/s speed. Choose Pro for standard sticker/label production; choose Ultra for high-volume or packaging workflows requiring crease-and-cut in one pass.
Q: 3. Does it require proprietary software?
A: No. The ZD350 Pro works with CorelDRAW and Adobe Illustrator via direct output or the Camera Cut plug-in. No locked-in software subscription required.
Q: 4. Can it run without a computer?
A: Yes. Jobs can be loaded via USB drive or sent over WiFi. The HD touchscreen provides full machine control including job selection, pressure adjustment, speed settings, and origin positioning.
digital cutter, ZD350 Pro, desktop cutting machine, sticker cutter, kiss-cut machine, Purcell ZD350 Pro
Who This Machine Is For
Print shops, e-commerce fulfillment centers, and packaging businesses handling 30+ custom label orders per day.
Most shops recover their investment within 2-3 months of daily use. Customers typically start with one unit, test it for 4-8 weeks, then return for multi-unit orders. Built in an ISO-certified factory - 1,000+ units shipped monthly, CE/RoHS/CPST/SST certified, 1-year warranty with global support.
Questions? Contact our team for a recommendation based on your market.
Hot Tags: digital cutter, China digital cutter manufacturers, suppliers, factory
| Parameter | Specification |
| Model | ZD350 Pro |
| Material Width | 340mm |
| Effective Width | 330mm |
| Max Speed | 800mm/s |
| Accuracy | ±0.1mm |
| Blade Pressure | 2000g |
| Max Thickness | 350gsm |
| Motor Type | Stepper |
| Control Panel | HD Touchscreen |
| Connectivity | USB/WiFi/USB Drive |
| Dimensions | 700×420×295mm |
| Weight | 48kg |
