Description
Technical Parameters
Smart Label Cutter with Auto Feed
Key Features
- QR code automation - The built-in CCD camera scans QR codes on printed sheets and automatically loads the correct cutting file. No manual file selection needed. Load 150 sheets, press start, and walk away.
- Offline operation - Send jobs via USB flash drive, U-disk, or Wi-Fi. No dedicated PC required at the machine. One laptop can queue jobs to multiple cutters across the shop floor.
- High-precision contour detection - CCD camera with LED-illuminated scanning area reads registration marks at ±0.1mm accuracy. Kiss-cut, die-cut, and full-cut profiles all maintain edge-to-edge precision across the full 330mm cutting width.
- 2000g cutting force - Handles self-adhesive labels, reflective films, holographic media, PVC sheets up to 0.5mm, and paper cards. One machine covers the material range that would otherwise require multiple tools.
- Multi-software compatible - Works with CorelDRAW, Illustrator, SignMaster, and Camera Cut plug-in. Design in your preferred software and send directly to the cutter without format conversion.
Product Advantages
Application Scenarios
For Label & Sticker Production Shops
The 150-sheet auto-feed tray turns batch label cutting from a full-time job into a background task. Queue up printed sheets, let the CCD camera read QR codes and registration marks, and the machine processes the entire stack unattended. For shops producing branded product labels, barcode stickers, or packaging decals, this means one operator can run multiple machines simultaneously.
01
For Phone Repair & Screen Protector Businesses
When paired with a film cutting machine, the ZD350Pro-L handles back-skin cutting, tablet film shaping, and custom phone wraps as part of an automated workflow. QR code matching eliminates the risk of cutting the wrong design on expensive material - the camera verifies every sheet before the blade touches it.
02
For Small-Batch Custom Orders
Not every job fills a 150-sheet tray. The auto-feed system handles single sheets just as reliably as full stacks. Switching between a 10-piece custom sticker order and a 500-label production run requires no recalibration or mechanical adjustment. This flexibility makes the machine viable for both made-to-order studios and repeat-production environments.
03
How It Compares to Manual-Feed Cutters
A manual-feed cutter requires an operator to place each sheet, align it, and start the job - about 30-45 seconds per sheet. The auto-feed tray eliminates that labor entirely: load once, collect finished pieces. Over a 500-sheet production day, that recoverable time equates to roughly 4-6 hours of unattended operation that staff can redirect to packaging, quality checking, or running additional equipment.
04
Product Description

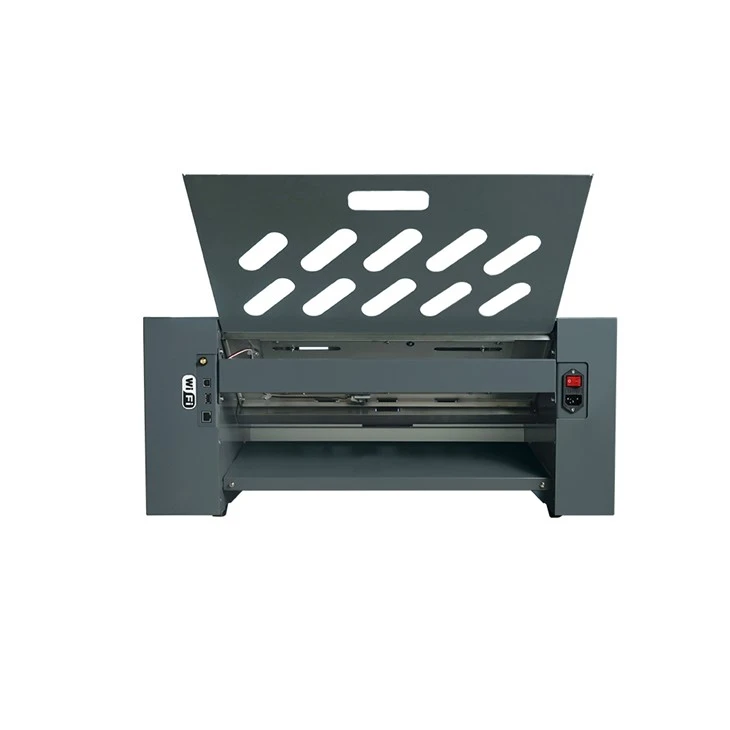

The ZD350Pro-L smart label cutter combines automatic sheet feeding with CCD-based contour detection in a single desktop unit. Its core advantage over conventional label cutters is the auto-feed system: load up to 150 sheets into the input tray, and the machine pulls, scans, and cuts each one sequentially without operator intervention.
Material compatibility spans self-adhesive label stock, reflective films, holographic media, PVC sheets, and paper cards - all handled with the same 2000g cutting mechanism. The 330mm maximum cutting width accommodates wide-format label sheets, while the ±0.1mm accuracy keeps kiss-cut profiles consistent from the first sheet to the last.
Three transfer methods - USB cable, U-disk, or Wi-Fi - give shops flexibility in how they connect. For multi-machine environments, a single design station can send jobs to multiple cutters wirelessly, keeping the production floor cable-free.
FAQ
Who This Machine Is For
Print shops, e-commerce fulfillment centers, and packaging businesses handling 30+ custom label orders per day.
Most shops recover their investment within 2-3 months of daily use. Customers typically start with one unit, test it for 4-8 weeks, then return for multi-unit orders. Built in an ISO-certified factory - 1,000+ units shipped monthly, CE/RoHS/CPST/SST certified, 1-year warranty with global support.
Questions? Contact our team for a recommendation based on your market.
Hot Tags: smart label cutter with auto feed, China smart label cutter with auto feed manufacturers, suppliers, factory
|
Item |
Specification |
|
Model |
ZD350Pro-L |
|
Maximum Media Width |
350 mm |
|
Maximum Cutting Width |
330 mm |
|
Auto Feeding Quantity |
150 sheets |
|
Maximum Standby Speed |
800 mm/s |
|
Maximum Cutting Speed |
800 mm/s |
|
Cutting Force |
2000 g |
|
Positioning Method |
CCD Camera with Contour Edge Patrol & QR Code Support |
|
Accuracy |
±0.1 mm |
|
Repeat / Positioning Accuracy |
±0.082 mm |
|
Motor Type |
Stepper Motor |
|
Power Supply |
220V / 50Hz / 50A |
|
Power Consumption |
<100 W |
|
Interface Options |
USB / U-disk / Wi-Fi |
|
Operating Environment |
5℃ – 35℃ |
|
Cuttable Materials |
Self-adhesive labels, reflective film, holographic media, PVC sheets, paper cards |
|
Supported OS |
Windows XP / 7 / 8 / 10 |
|
Software Compatibility |
CorelDRAW / Illustrator / SignMaster / Camera Cut Plug-in |
|
Product Size |
800 × 510 × 530 mm |
|
Package Size |
800 × 510 × 530 mm |
