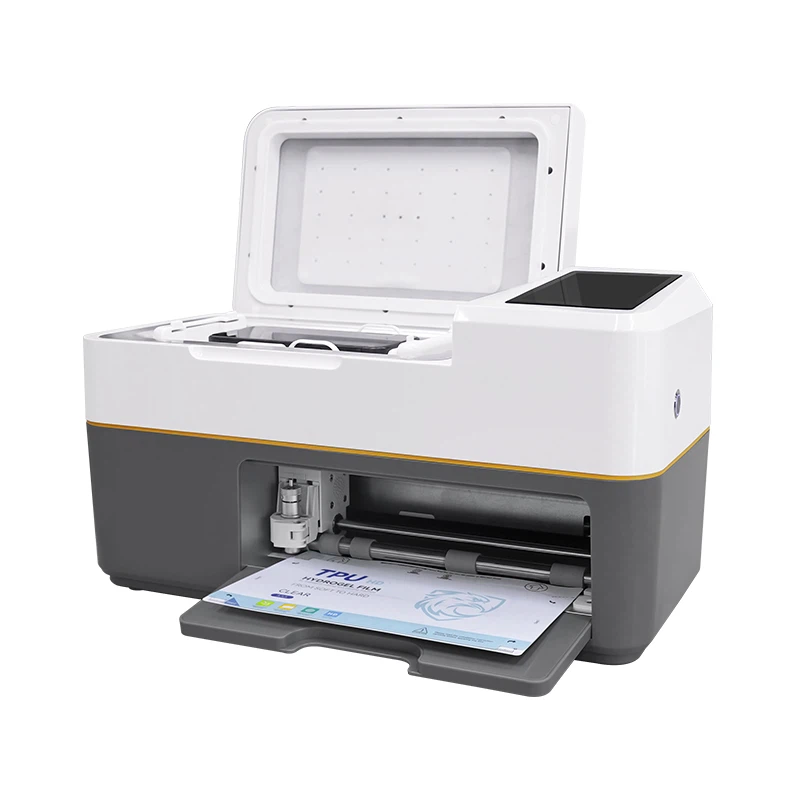

Smart Screen Protector Cutter & Applicator
video

Smart Screen Protector Cutter & Applicator

The smart screen protector cutter & applicator is a professional, all-in-one solution for cutting and applying screen protection films. With built-in vacuum suction and automatic dust removal, it delivers flawless adhesion on flat or curved screens. Supporting over 65,000 device models, including tablets up to 12.9", it allows for one-click precision cutting and automated film application.
Send Inquiry

Description

Technical Parameters

Smart Screen Protector Cutter & Applicator

5 Key Highlights



  • One-Click Cutting & Application – Instantly cut and apply hydrogel, UV, or TPU films with automated precision.
  • Advanced Dust Removal System – Keeps films free from bubbles, dust, and impurities during application.
  • Precision Vacuum Suction – Ensures flawless adhesion even on curved screens or tablets.
  • Extensive Device Compatibility – Supports over 65,000 device templates, including phones, phablets, and tablets up to 12.9".
  • All-in-One Space-Saving Design – Integrates cutting and applying in a single, compact machine for faster workflow and reduced cost.



Product Advantages & Use Scenarios



This smart screen protector cutter and applicator is ideal for:

  • Mobile accessory stores producing custom screen protectors efficiently.
  • Repair shops needing accurate and bubble-free film application.
  • Businesses or workshops handling high-volume device protection.
  • Tablets and phones with curved or irregular screens.
  • Hydrogel, UV, and TPU film cutting and applying in a single step.

The M40 reduces errors, saves space, and increases productivity compared to using separate cutting and applying equipment.



Product Description



The smart screen protector cutter & applicator is a professional, all-in-one solution for cutting and applying screen protection films. With built-in vacuum suction and automatic dust removal, it delivers flawless adhesion on flat or curved screens. Supporting over 65,000 device models, including tablets up to 12.9", it allows for one-click precision cutting and automated film application.



Its stepper motor-driven cutting system achieves up to 500mm/s speed with ±0.1mm accuracy, while pressure control and optional UV curing ensure results as hard and smooth as tempered glass. Compact and lightweight, the M40 is perfect for accessory shops, repair centers, and any business requiring fast, error-free film application.



Technical Parameters



Item

Specification

Model

M40

Max Media Width

235 mm

Max Cutting Width

217 mm (supports tablets up to 12.9")

Max Cutting Pressure

1000 g

Max Cutting Speed

500 mm/s

Supported Size Range

Min: 129×61 mm / Max: 188×88 mm

Control Panel

5.5-inch Touchscreen

Drive Type

Stepper Motor

Connectivity

Wi-Fi / Bluetooth

Air Pump Pressure

≈100 KPa

Cutting Accuracy

±0.1 mm

Power Input

24 VDC 2.75A

Output Power

48 W

Operating Environment

5°C – 35°C / 35%–70% RH

Product Dimensions

425 × 190 × 235 mm

Net Weight

8 kg

Packaging Size

510 × 270 × 370 mm

Gross Weight

10.5 kg



FAQ



1. Which types of films can the machine handle?

It works with hydrogel, UV, and TPU films for phones and tablets.

2. Can it handle curved screens and tablets?

Yes, the M40 supports devices up to 12.9" and automatically adjusts for curved or irregular surfaces.

3. How accurate is the cutting and application?

Cutting accuracy is ±0.1mm, and the vacuum suction ensures bubble-free, precise film placement.



Smart Screen Protector Cutter Applicator1

Smart Screen Protector Cutter Applicator2

Smart Screen Protector Cutter Applicator3

Smart Screen Protector Cutter Applicator4

Smart Screen Protector Cutter Applicator5

Hot Tags: smart screen protector cutter & applicator, China smart screen protector cutter & applicator manufacturers, suppliers, factory

Item

Specification

Model

M40

Max Media Width

235 mm

Max Cutting Width

217 mm (supports tablets up to 12.9")

Max Cutting Pressure

1000 g

Max Cutting Speed

500 mm/s

Supported Size Range

Min: 129×61 mm / Max: 188×88 mm

Control Panel

5.5-inch Touchscreen

Drive Type

Stepper Motor

Connectivity

Wi-Fi / Bluetooth

Air Pump Pressure

≈100 KPa

Cutting Accuracy

±0.1 mm

Power Input

24 VDC 2.75A

Output Power

48 W

Operating Environment

5°C – 35°C / 35%–70% RH

Product Dimensions

425 × 190 × 235 mm

Net Weight

8 kg

Packaging Size

510 × 270 × 370 mm

Gross Weight

10.5 kg
