Mobile Screen Guard Cutting Machine
Description
Technical Parameters
Mobile Screen Guard Cutting Machine
Key Highlights
• Precision cutting system engineered for multi-material screen films
• Fast, stable performance ideal for high-volume protector production
• Smart interface with a 4-inch display for easier workflow control
• Supports PET, TPU, hydrogel and tempered-glass film formats
• Compact footprint suitable for shops, kiosks, and service centers
Product Advantages & Usage Scenarios
The Mobile Screen Guard Cutting Machine delivers consistency and accuracy for shops handling frequent screen-protector customization. It streamlines professional-grade screen guard workflows, especially in stores offering on-demand cutting, same-day replacement, or mixed-device film services.
Its multi-material cutting capability makes it useful in mobile repair centers, tablet accessory shops, mall kiosks, online-order production rooms, and technicians who need a reliable, low-maintenance system for hydrogel film processing.
Product Description

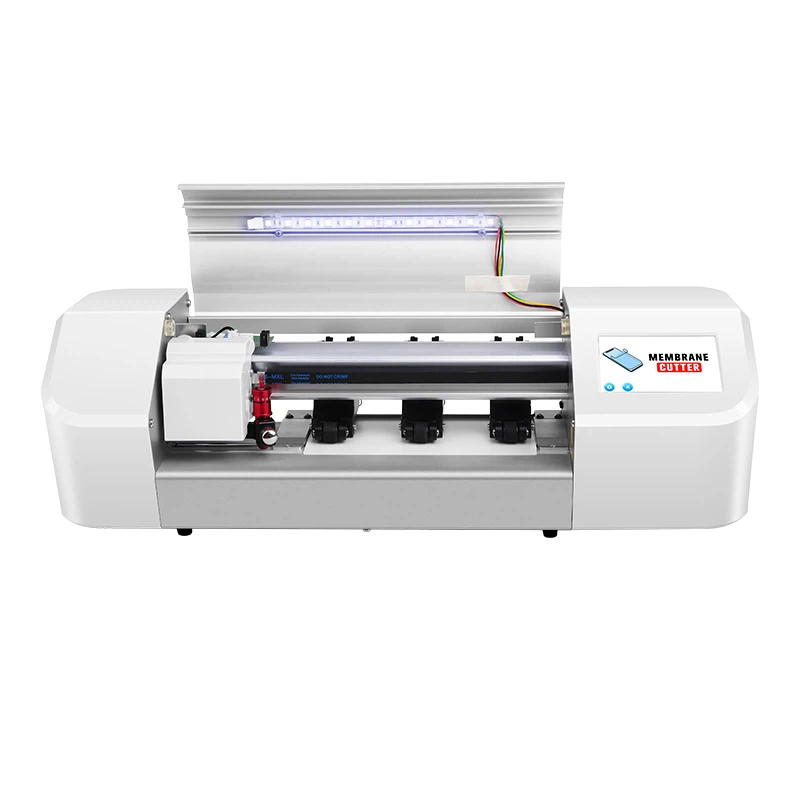

The Mobile Screen Guard Cutting Machine brings together advanced film-cutting technology with a highly practical design. Built for both S310 and S390 models, this series supports accurate shaping of PET, TPU, hydrogel, anti-glare, anti-fingerprint, and tempered-glass films. With improved mechanical stability, optimized cutting algorithms, and smooth motion control, it ensures clean edges without chipping or tearing.
A clear 4-inch touch display provides intuitive access to settings, templates, and material adjustments, reducing training time for new operators. Whether used for daily commercial workloads or flexible small-batch production, the system maintains uniform output and long-term reliability.
From mobile phones to tablets and other digital devices, the Mobile Screen Guard Cutting Machine enables a more adaptive, high-efficiency protector-making process that fits the needs of modern repair businesses.
Technical Specifications (S310 & S390)
|
Specification |
S310 |
S390 |
|
Model |
S310 |
S390 |
|
Display |
4-inch touch screen |
4-inch touch screen |
|
Maximum Cut Width |
209 mm |
327 mm |
|
Maximum Feed Width |
295 mm |
360 mm |
|
Cutting Accuracy |
0.1 mm |
0.1 mm |
|
Cutting Speed (4 gears) |
300–500 mm/s |
300–500 mm/s |
|
Cutting Force |
1000 g |
1000 g |
|
Interface |
Bluetooth |
Bluetooth |
|
Input |
100–240 V |
100–240 V |
|
Output |
24 V 2.75A DC |
24 V 2.75A DC |
|
Power |
<65 W |
<65 W |
|
Operating Temperature |
5°C–35°C |
5°C–35°C |
|
Machine Size |
500 × 200 × 170 mm |
580 × 200 × 170 mm |
|
Package Size |
640 × 310 × 265 mm |
660 × 310 × 265 mm |
|
Gross Weight |
8.5 kg |
9.5 kg |
